Industrial CNC Vertical Lathe Machine Heavy Duty High Precision Turning

Name: Industrial CNC Vertical Lathe Machine Heavy Duty High Precision Turning
Brand: Henan Baishun Machinery Equipment Co., Ltd.
SKU: CK5125
Price: 96,300.00 USD
Availability: InStock

Produkt-Details

Herkunftsort: Henan, China

Markenname: BAISHUN MACHINERY

Zertifizierung: CE/ISO9001

Modellnummer: CK5125

Dokument: Produktbroschüre PDF

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge: 1 Satz

Preis: negotiable

Verpackung Informationen: Export-Standard-Holzgehäuse-Paket oder Verhandlungen mit Kunden

Lieferzeit: 45 Arbeitstage

Zahlungsbedingungen: L/C, T/T, Western Union

Versorgungsmaterial-Fähigkeit: 20 Sätze/Sätze pro Monat

Erhalten Sie besten Preis

Produkt-Details

Produktbeschreibung

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                heavy duty vertical lathe machine, high precision CNC lathe, industrial vertical turning machine


Produktname:	Billiges CNC-Einzelkolonnen-Vertikalturm Drehmaschinenindustrie Fall Max Ägypten Marketing	Maschinentyp:	CK5125
Max. Drehdurchmesser ((mm):	2500	Max. Höhe des Werkstücks ((mm):	1600
Größe des Arbeitstisches ((mm):	2250	Max.Gewicht des Werkstücks:	8tons
Nummer der Spindeln:	einzel	Stromspannung:	380V
Schlüsselwörter:	Vertikal drehbare Drehmaschine	Funktion:	Metalldrehen

Produktname:	Billiges CNC-Einzelkolonnen-Vertikalturm Drehmaschinenindustrie Fall Max Ägypten Marketing
Maschinentyp:	CK5125
Max. Drehdurchmesser ((mm):	2500
Max. Höhe des Werkstücks ((mm):	1600
Größe des Arbeitstisches ((mm):	2250
Max.Gewicht des Werkstücks:	8tons
Nummer der Spindeln:	einzel
Stromspannung:	380V
Schlüsselwörter:	Vertikal drehbare Drehmaschine
Funktion:	Metalldrehen

Industrial CNC Vertical Lathe Machine Heavy Duty High Precision Turning

Industrial CNC Vertical Lathe Machine With High Precision Turning Capability

This industrial CNC vertical lathe machine is designed for high precision turning of large metal workpieces.
With a heavy duty structure and advanced CNC system, it ensures stable performance, excellent accuracy, and high efficiency for industrial machining applications.

Tool Holder:

Standard equipment includes a four-station electric tool turret, sourced from YANTAI Universal Brand, recognized as one of China's premier tool post suppliers. Depending on machine size requirements, options for six and eight-tool stations are also available.

Chip Conveyor:

For machines equipped with full enclosures, a chip conveyor system is recommended to expedite the removal of scrap materials commonly found in steel industries. Its unique design optimizes chip disposal even under challenging conditions, such as those encountered in the steel pipe industry or when handling lengthy strips and large roll chips generated by wire drawing machines.

Worktable Construction:

Fabricated from high-hardness materials, the worktable prioritizes durability while maintaining substantial load-bearing capabilities. The base's guiding surface undergoes meticulous scraping to elevate machining precision, offering a competitive edge within the industry.

Electrical Control:

All electrical control components reside within a dedicated power distribution cabinet, with operational elements conveniently grouped within a centrally positioned hanging button station for streamlined access and control.

Machine parameter

Model	CK518	CK5112Q	CK5112A	CK5116Q	CK5120A	CK5126A
Max. turning diameter of vertical tool rest (mm)	800	1200	1200	1600	2000	2600
Working table diameter (mm)	700	1000	1000	1400	1800	2200
Max. height of work-piece (mm)	800	1000	1000	1200	1250	1400
Max. weight of work-piece (kg)	1500	1500	3200	3200	8000	8000
Range of worktable rotation speed (rpm)	30-260	20-180	6.3-200	15-160	3.2-100	2.2-70
Feeding series	Stepless	Stepless	Stepless	Stepless	Stepless	Stepless
Range of tool rest feed (mm/min)	0.25-90	0.25-90	0.8-86	0.25-90	0.8-86	0.8-86
Cross beam travel (mm)	500	1000	650	1200	890	1090
Horizontal travel of tool rest (mm)	500	700	700	900	1115	1400
Vertical travel of tool rest (mm)	450	500	650	750	800	800
Size of section of cutter bar (mm)	30*40	30*40	30*40	30*40	30*40	30*40
Main motor power (kw)	11	15	22	15	30	30

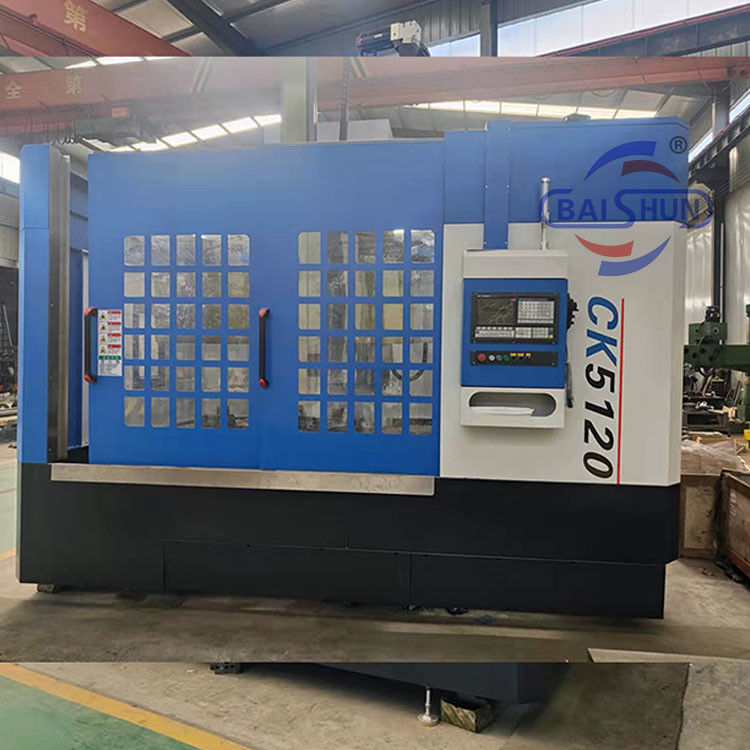

Detail Machine Photo:

Industrial CNC Vertical Lathe Machine Heavy Duty High Precision Turning 2

We are a direct-sale lathe machine manufacturer, not a trading company,
which means we can offer you the best prices.

Welcome get in touch with us:)
Tel/Whatsapp:+86 18003851898 (Miss Dora)
